Pre-notched ends reduce the need for hand-cutting and shaping on the jobsite.
Easy alignment helps installers complete overlaps faster and with less training.

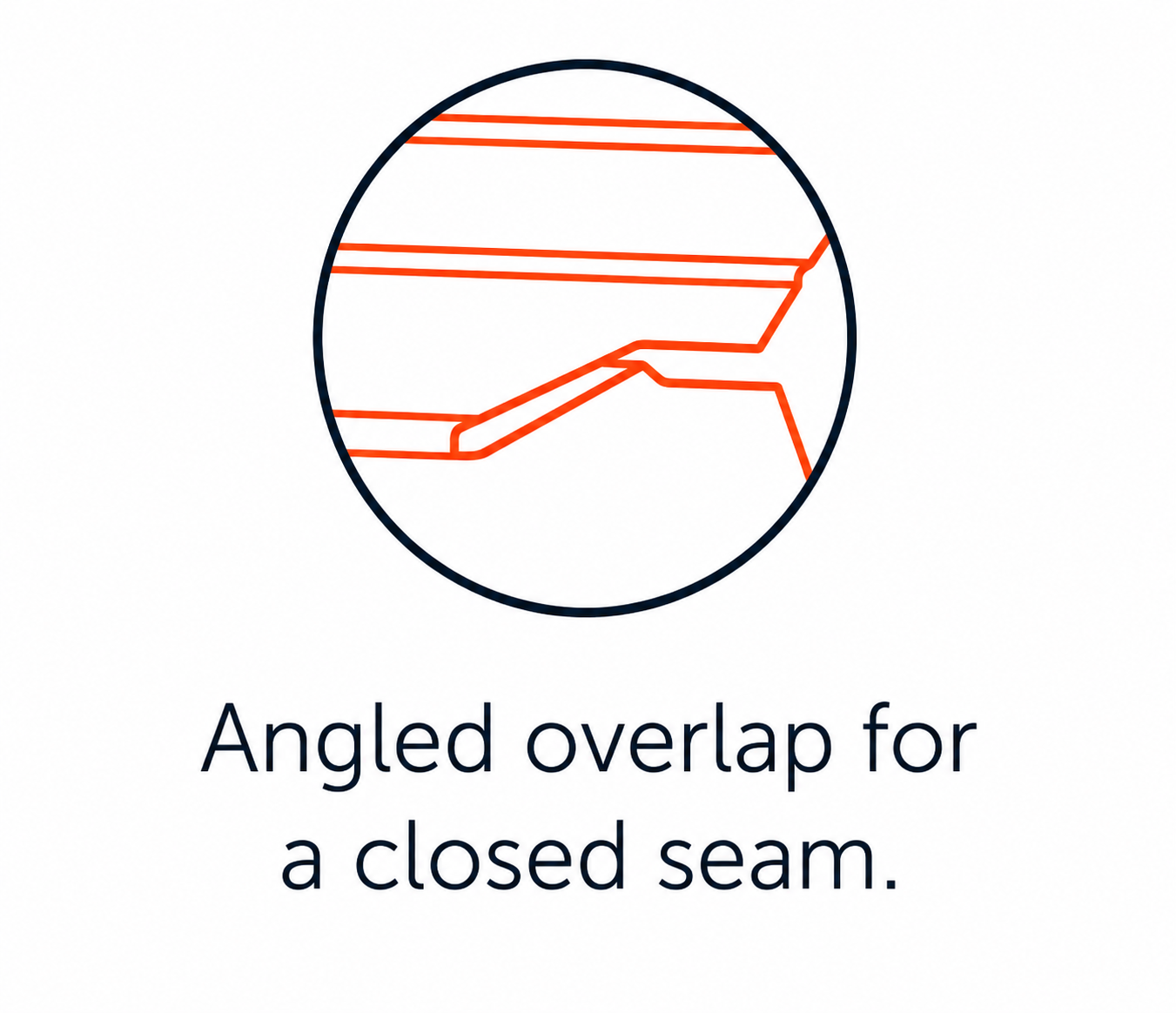

The angled overlap creates a cleaner closed seam while helping reduce installation errors and callbacks.
Available in aluminum and steel, TruFit™ provides a durable solution for both eave and rake applications.
TruFit™ Pre-Notched Drip Edge is designed for a precise fit, easy alignment and a clean angled overlap. Pre-notched ends eliminate the need for hand-notching in the field, helping installers create consistent seams with fewer adjustments.

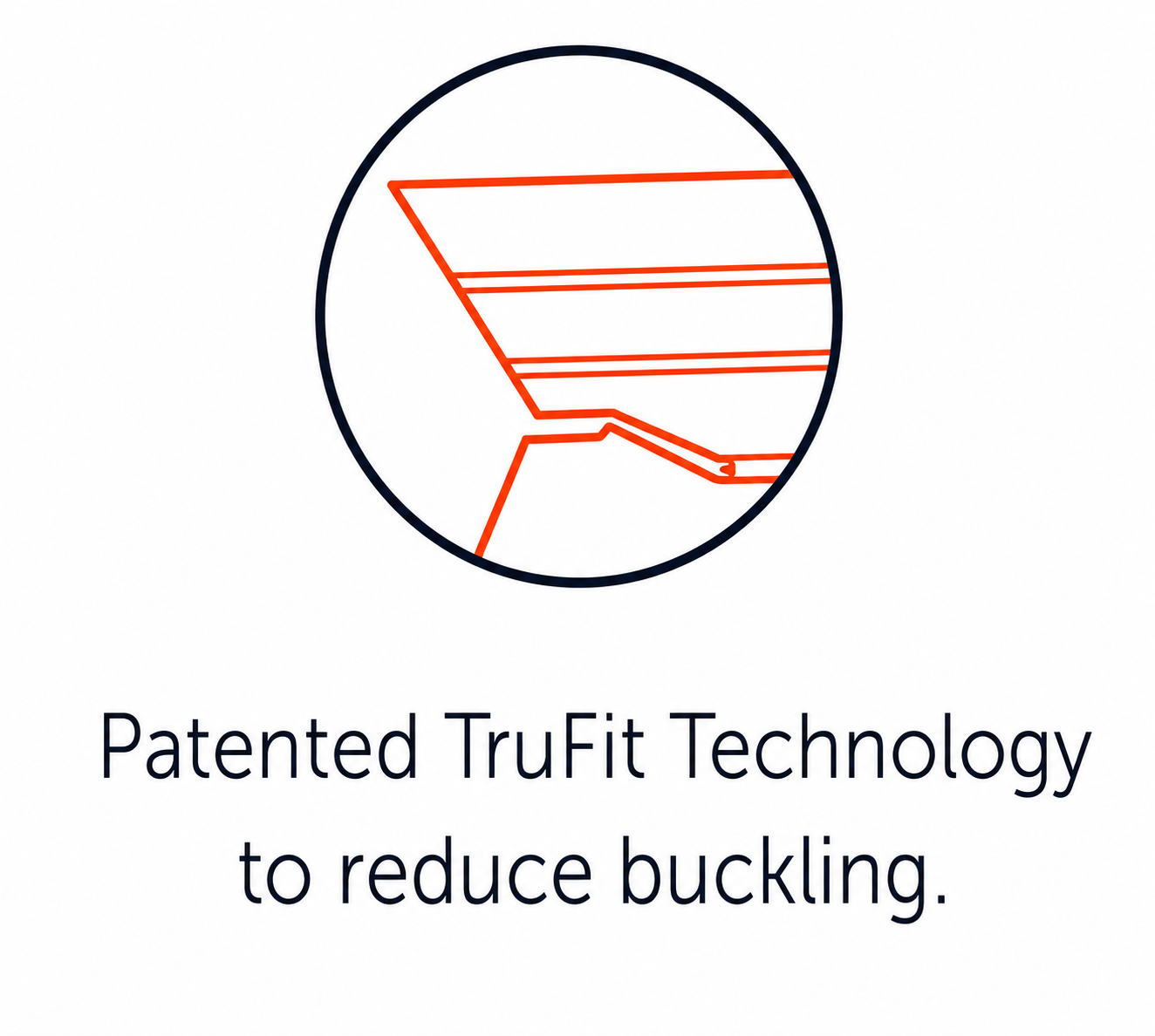

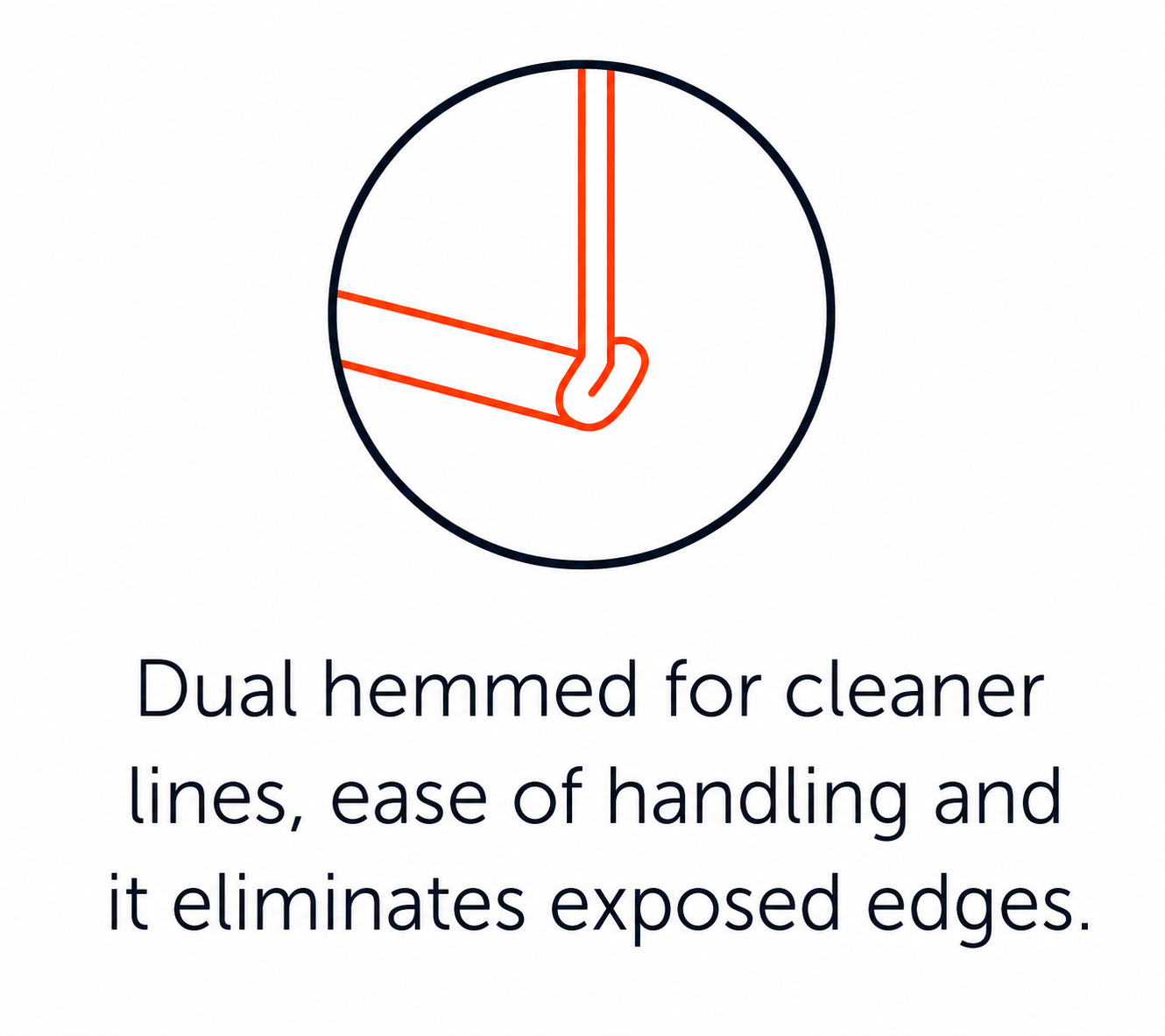

Dual-hemmed construction adds strength, improves handling and eliminates exposed cut edges. Patented TruFit™ technology is designed to reduce buckling that can lead to callbacks.
TruFit™ Pre-Notched Drip Edge
TruFit™ Pre-Notched Drip Edge is available in multiple aluminum and steel profiles, thicknesses and lengths. Availability may vary by profile, finish and color.
| Material | Thickness | Available Profiles | Lengths |
|---|---|---|---|
| Aluminum | 0.016" | 10 ft | |
| Aluminum | 0.019" | 10 ft and 12 ft | |
| Steel | 0.013" | 10 ft | |
| Steel | 0.016" | 10 ft | |
| Steel | 0.019" | 10 ft |
Profile, length and color availability may vary. Contact Customer Service for current ordering options.
Confirm all requirements with the applicable local building authority before installation.
Align the pre-notched end with the adjoining piece to create the intended angled overlap. The pre-cut design eliminates field hand-notching and helps produce a consistent closed seam.
Avoid pinching or deforming the nose of the drip edge during handling, as incorrect handling can contribute to fish-mouthing.
View detailed installation resourcesSections 507.2.8.3 and R905.2.8.5 require drip edge at eaves and rake edges of shingle roofs. Adjacent sections must overlap by at least 2 inches.
The vertical leg must be at least 1½ inches wide, and the roof flange must extend back onto the roof by at least 2 inches.
Source: IBC and IRC 2018
Section R905.2.8.6 requires drip edge at eaves and gables of shingle roofs, with a minimum 3-inch overlap between adjoining sections.
Eave drip edge must extend at least ½ inch below the sheathing and at least 2 inches back onto the roof.
Source: Florida RBC
Infinity® Drip Edge is designed to meet modern residential building code requirements for roof edge protection.
Always follow local building codes and Quality Edge installation instructions.
