Drip Edge

Proper drip edge flashing is needed to divert water away from the fascia, roof deck, and rake boards. The International Residential Code has mandated drip edges since 2012 to ensure water is directed away from these areas.

Drip Edge Overview

Until recently, only snow-belt states required drip edge to prevent issues with ice backup caused by melting snow, which exposed the flashing point—allowing water to penetrate the rafter tails, insulation, fascia and soffits.

More recently, many building code writers in the rest of the county—especially the south—have also adopted the drip edge requirement to help guard against wood rot. And Quality Edge brings smart, innovative perimeter flashing solutions to every project you deliver.

Profiles

Quality Materials. Real results.

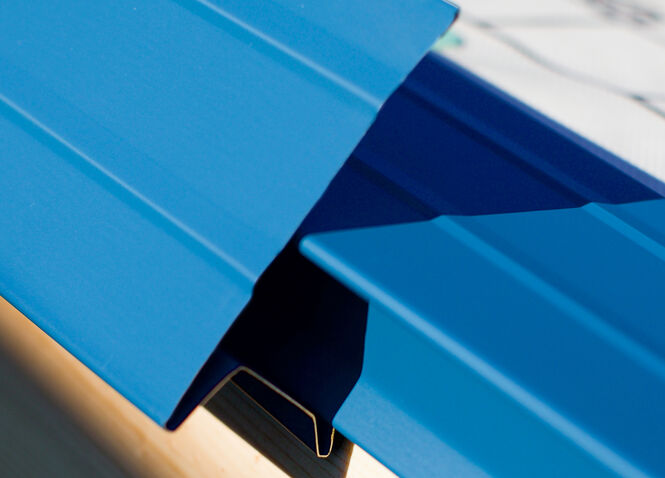

Infinity Drip Edge

Our snap lock design offers a hooking drip edge assembly allowing for easy, nesting installation. Installers can easily maneuver, and save on labor hours by reducing callbacks and the need to cut or notch.

  • Patented snap-lock design reduces fish-mouthing, making installation easy and efficient.
  • Dual wave bracing directs water away from the home and enhances structural strength, reducing the risk of buckling.
  • The top hem adds strength and a sleek appearance, while the 1.5″ enhanced face covers any discolored or uneven existing fascia.
  • Meets and surpasses IBC & IRC Building Codes with its 2.69″ depth nail flange.
  • Available in aluminum with a thickness of 0.019″ or in steel with thickness options of 0.010″ or 0.013″.
  • Choose between a Q800 TuffTech™ finish or a mill finish for your preference.

Infinity Drip Edge Details

Snap lock design installs without gaps, cutting or training required

FUNCTION
Provides a clean overlap with one continuous run and reduces labor
with no notching needed.

AVAILABLE OPTIONS
Aluminum (0.019″): IDE
Steel (0.010″): IDE30G
Steel (0.013″): IDE28G

MATERIAL AVAILABILITY
Aluminum & Steel

COATING
Q800 TuffTech™ or Mill

THICKNESS
Aluminum: 0.019″
Steel: 0.010″ & 0.013″

WARRANTY
Lifetime Limited Warranty

PATENT
U.S. Patent No.: 10,132,085

CERTIFICATION & RATING
Meets ASTM B209 standards

BUILDING CODES AND BEST PRACTICES
507.2.8.3, R905.2.8.5 Drip edge.

A drip edge shall be provided at eaves and rake edges of shingle roofs. Adjacent segments of the drip edge shall be lapped not less than 2 inches. The vertical leg of drip edges shall not be less than 1½ inches in width… and shall extend back on the roof not less than 2 inches. SOURCE: IBC & IRC 2018

R905.2.8.6 Drip edge.

Provide drip edge at eaves and gables of shingle roofs. Overlap to be a minimum of 3 inches. Eave drip edges shall extend ½ inch below sheathing and extend back on the roof a minimum of 2 inches. SOURCE: Florida RBC

TruFit™ Pre-Notched Drip Edge

Designed with performance and durability in mind, our pre-notched T-Style drip edge is extremely effective at guiding water away from the roof while meeting IBC and IRC building code requirements with overlaps without notching.

  • Aluminum or steel
  • Available in a variety of sizes to meet your project’s specifications
  • Pre-notched for a perfect fit, easy alignment and angled 2″ overlap for a closed seam
  • No hand-notching needed
  • Dual-Hemmed for clean lines and to eliminate exposed edges
  • Q800 TuffTech or Mill finish

TruFit™ Pre-Notched Drip Edge Details

Installers have to be trained to hand notch drip edge in the field. Fish-mouthing can occur when the nose of the drip edge is pinched from incorrect handling.
TruFit™ Pre-Notched Drip Edge is dual hemmed for strength and clean lines. Pre-Notched for a perfect fit, easy alignment, requires
no training and has a 2” overlap to meet code.

FUNCTION
Perfect fit, easy alignment and angled overlap for a closed seam.
No hand-notching needed.

AVAILABLE OPTIONS
See Spec Guide for all option details.
Aluminum (0.016″): 1.5T016
Aluminum (0.019″): 1T, 1.5T, 1.5T12, 1.5XT, 1.75T10, 1.75T12, 2T, 2T12
Steel (0.013″): S1T28G, S1.25T28G, S1.5T28G, S1.5TEL28G, S2T28G
Steel (0.016″): 1TTPGAL, 1.5TTPGAL, 1.75TTPGAL, 2TTPGAL
Steel (0.019″): 1.5TNGAL_019

MATERIAL AVAILABILITY
Aluminum & Steel

COATING
Q800 TuffTech™ or Mill

COLOR AVAILABILITY
Varies by profile.
1.5T, 1.5T12, 2T & 2T12 available in all System Colors.
Contact Customer Service for complete color availability.

THICKNESS
Aluminum: 0.016″, 0.019″
Steel: 0.013″, 0.016″, 0.019″

WARRANTY
Lifetime Limited Warranty

PATENTS
U.S. Patent Nos.: 8,281,521 | 8,683,695 | 9,370,814
Canadian Patent No.: 2,768,934

CERTIFICATION & RATING
Meets ASTM B209 standards

BUILDING CODES AND BEST PRACTICES
507.2.8.3, R905.2.8.5 Drip edge.

A drip edge shall be provided at eaves and rake edges of shingle roofs. Adjacent segments of the drip edge shall be lapped not less than 2 inches. The vertical leg of drip edges shall not be less than 1½ inches in width… and shall extend back on the roof not less than 2 inches. SOURCE: IBC & IRC 2018

R905.2.8.6 Drip edge.

Provide drip edge at eaves and gables of shingle roofs. Overlap to be a minimum of 3 inches. Eave drip edges shall extend ½ inch below sheathing and extend back on the roof a minimum of 2 inches. SOURCE: Florida RBC

Gravel Stop

Gravel Stop is metal flashing installed at the roof edge to prevent gravel from falling off the roof. Typically used on low slope roofs, Quality Edge gravel stop provides a finished look while offering protection from water penetration.

  • Aluminum or steel
  • Available in a variety of sizes to meet your project’s specifications
  • Kynar®, Q800 TuffTech finish or Mill
  • Ideal for low-slope or flat roofs to keep tar and gravel from washing off the roof

Asphalt Drip Edge

Concerned about ice back-up and rot development on a commercial property? Quality Edge asphalt drip edge delivers the protection you need. In fact, that’s why this type of flashing is becoming code in many areas.

  • Aluminum or steel
  • Available in a variety of sizes to meet your project’s specifications
  • Kynar, Q800 TuffTech finish or Mill
  • Seals the area between the roof and the fascia to keep water and insects out

Gutter Apron

Gutter Apron ensures smooth water flow, safeguarding soffits, sheathing, and siding from water damage. It’s perfect for low-sloped roofs or those where shingles don’t extend far enough to guide water into the gutter. Installed over the roof edge, beneath the shingles, it extends over the back of the gutter to prevent water splashing behind it.

  • Aluminum or steel
  • Available in a variety of sizes to meet your project’s specifications
  • Q800 TuffTech finish or Mill
  • Added protection by directing water into the gutter

Endless Color Possibilities

Quality Edge offers a wide variety of colors to provide endless possibilities to make a roof and supporting elements last longer and look professional while doing it. Our perimeter flashing is available in aluminum and steel colors for today’s most popular exterior color pairings.

System Colors (Aluminum)

411 Cottage Red

467 Evening Shade

509 Norwood

507 Mocha

523 Snowmist

605 Eldridge Gray

827 Champagne

819 Herringbone

809 Wicker

807 Clay

805 Pewter

606 Cozy Cottage

522 Forest

518 Black

511 Terratone

508 Musket

503 Eggshell

502 Brown

462 Silver Lining

414 Ironstone

327 Desert Tan

280 White

204 Granite

177 Sandy Beige

469 Fresh Canvas

470 Midnight Blue

468 Fawn

Steel Colors

Quality Edge color 502 Brown

702 Low Gloss Brown

509 Norwood

507 Mocha

523 Snowmist

809 Wicker

807 Clay

805 Pewter

522 Forest

518 Black

511 Terratone

508 Musket

System Color DetailsExplore All Colors
