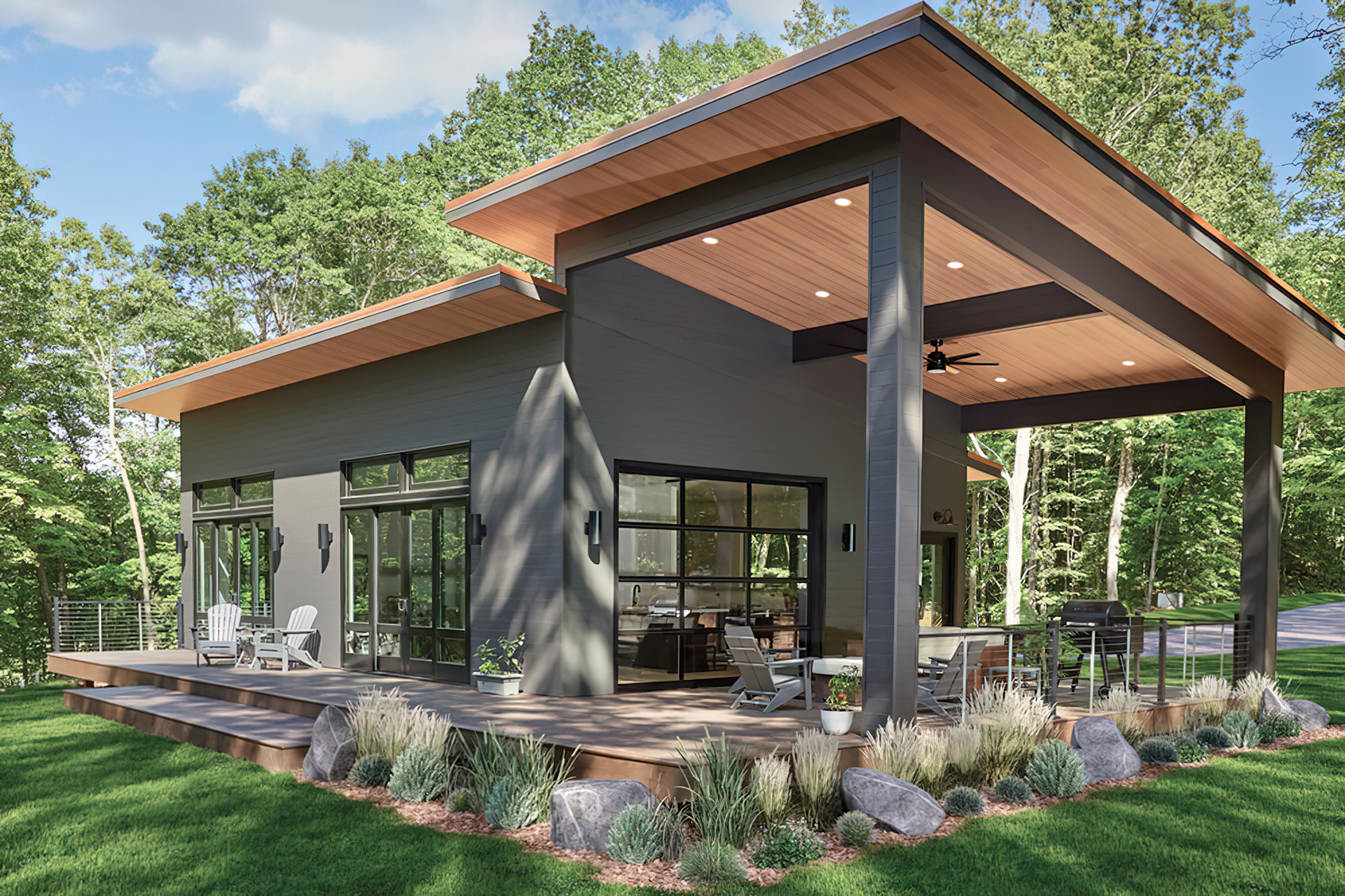

Steel soffit panels that create clean architectural overhangs with lasting durability.
OWN THE
OVERHANG
Overhang Systems: Soffit, Porch Ceiling & Underdeck
Watch the Video: Expand the Way You Live
VESTA SOFFIT
Architectural steel soffit panels designed for clean overhang lines and lasting durability.

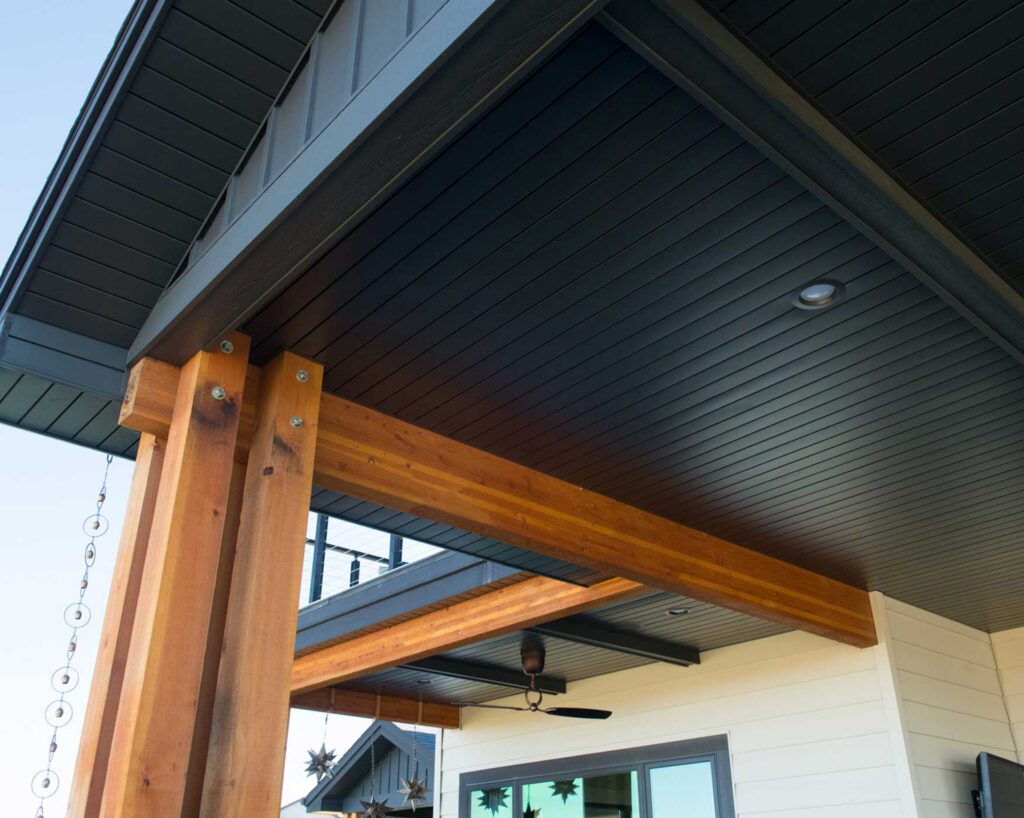

TRUVENT HIDDEN VENT
Hidden-vent soffit panels with solid and realistic woodgrain finishes and continuous airflow.
UNDERDECK
Underdeck drainage systems that transform the space below decks into dry outdoor living.

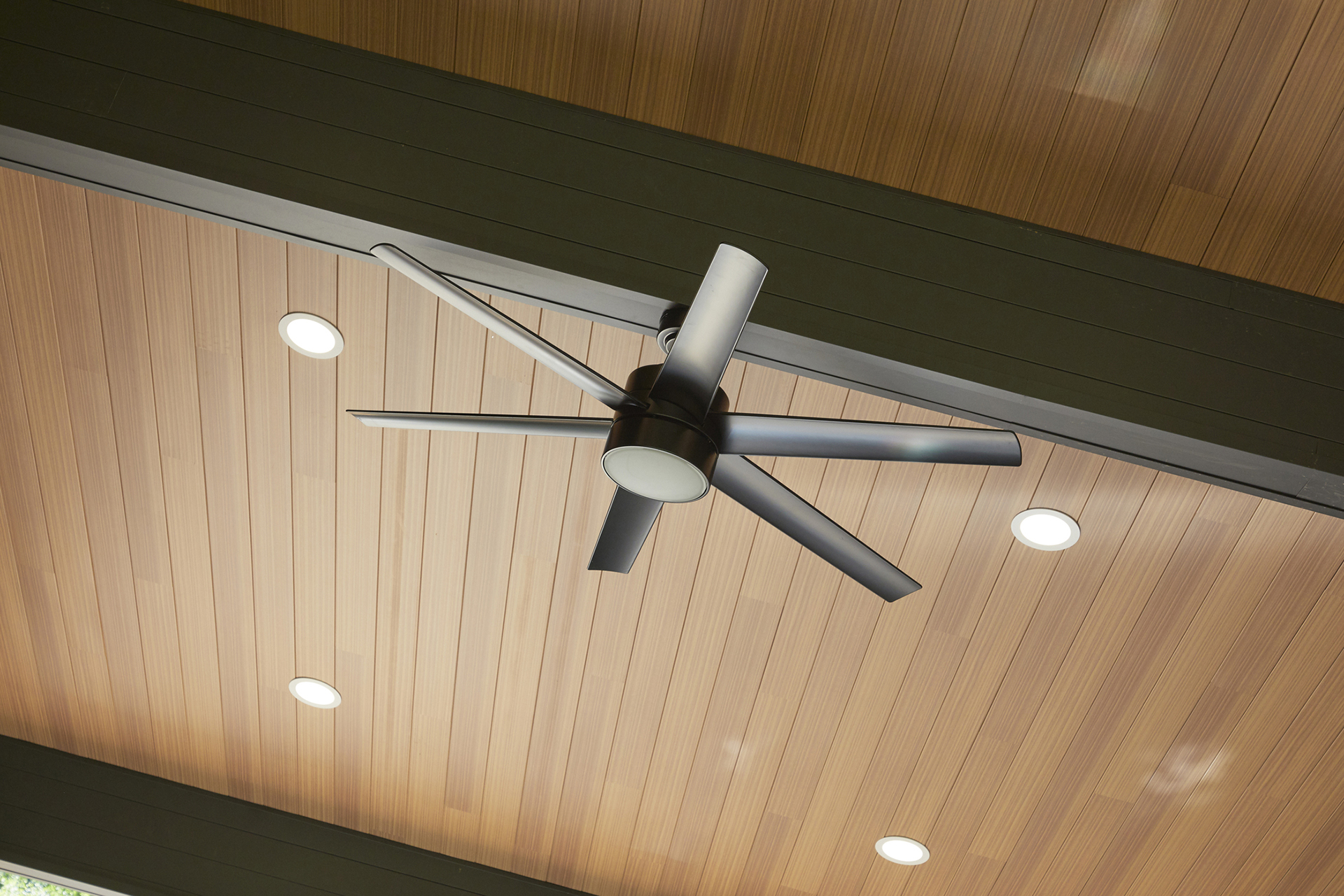

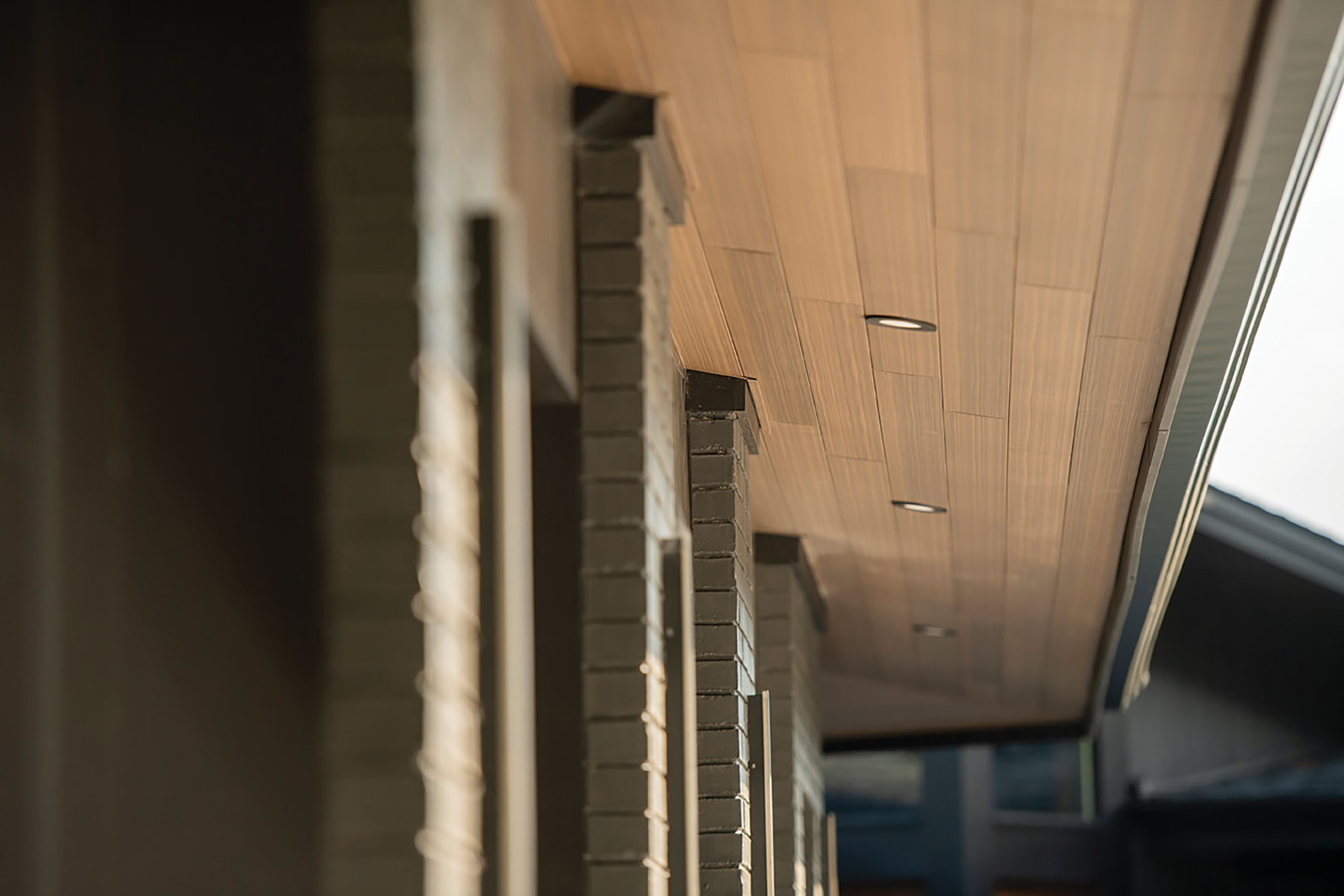

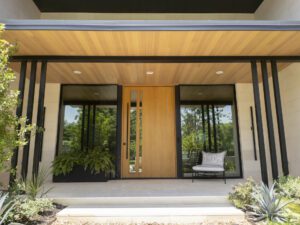

PORCH CEILING
Decorative porch ceiling panels designed for covered patios and outdoor living areas.
COLORS
COLOR THAT COMPLETES A HOME
Vesta Steel Siding is available in a curated palette of solid colors and authentic woodgrain finishes designed to pair seamlessly with trim, roofing, and architectural details.
486 Amber Cherry
486 Amber Cherry
488 Smokey Ash
488 Smokey Ash
487 Natural Oak
487 Natural Oak

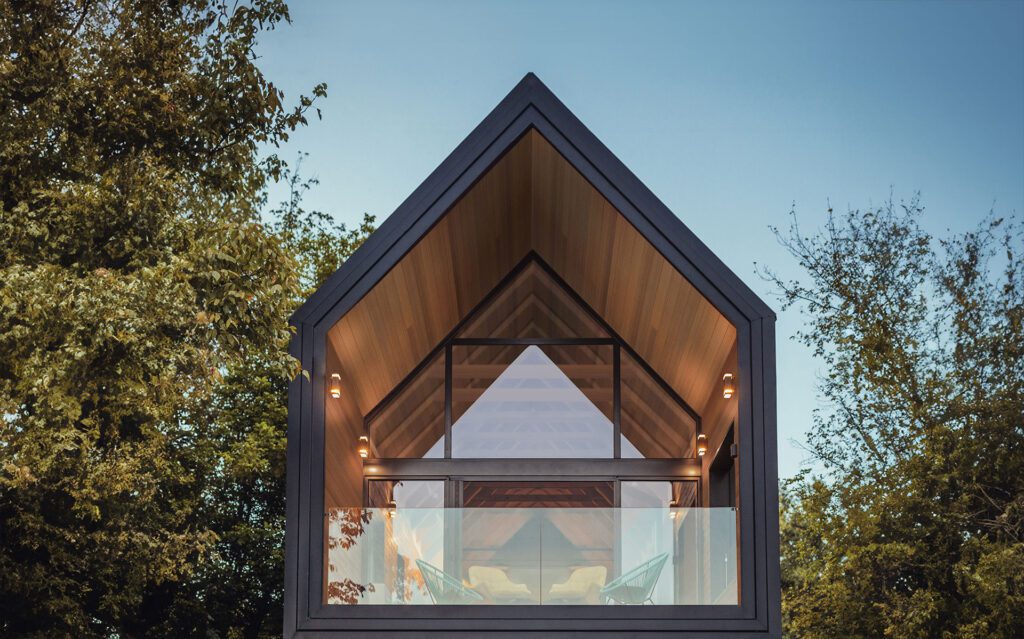

489 Warm Teak
489 Warm Teak
483 Sand Dollar
483 Sand Dollar
482 Gilded Grain
482 Gilded Grain
481 Driftwood
481 Driftwood
480 Autumn Thistle
480 Autumn Thistle
485 Aged Walnut
485 Aged Walnut
484 Dark Espresso
484 Dark Espresso
949 Rock Maple
949 Rock Maple

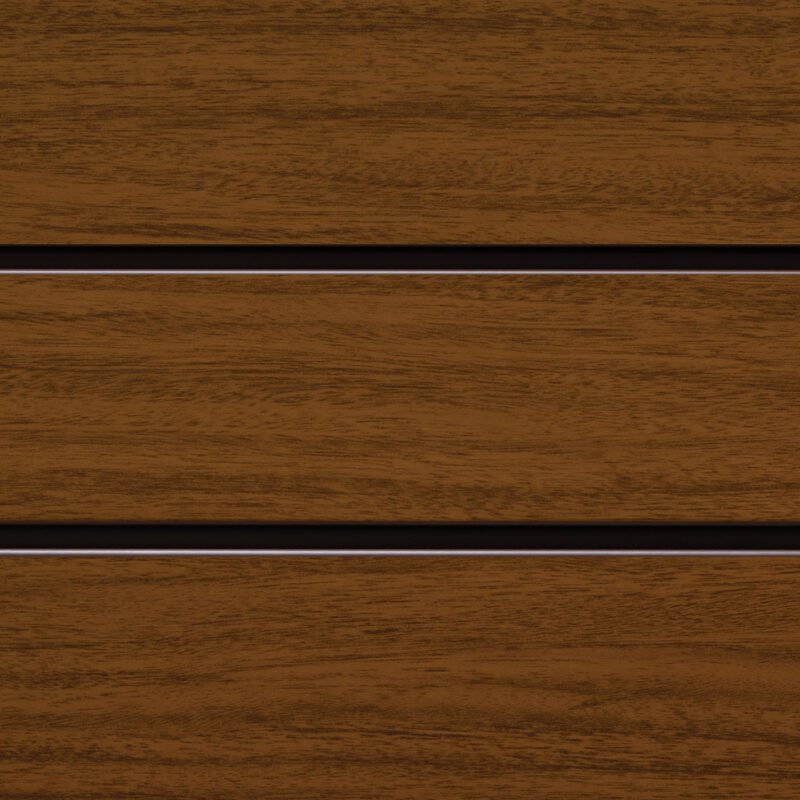

948 Medium Teak
948 Medium Teak
947 Light Cherry
947 Light Cherry
946 Dark Mahogany
946 Dark Mahogany

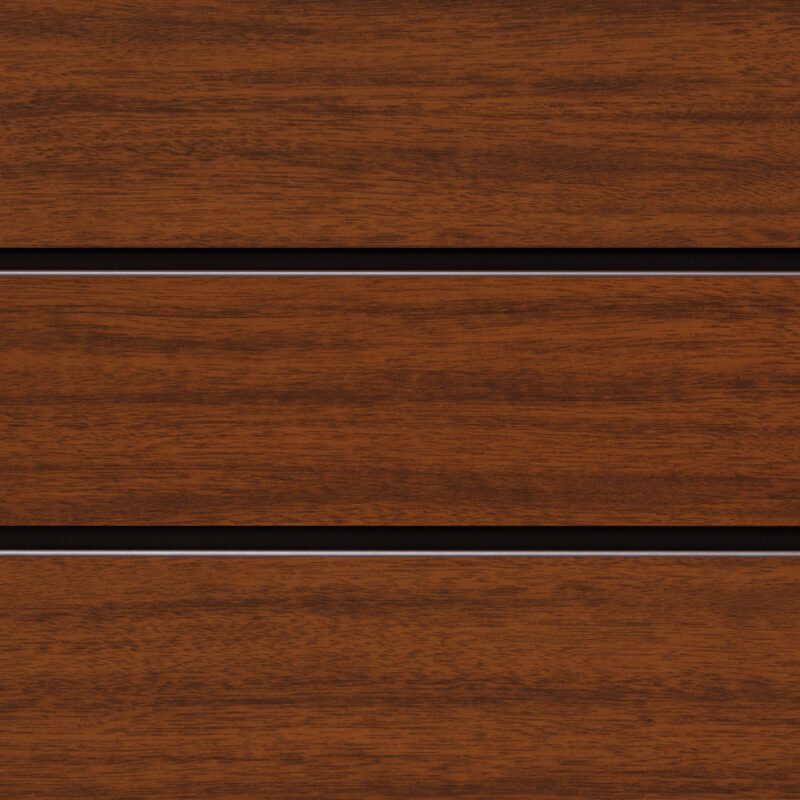

943 Karri
943 Karri
827 Champagne
827 Champagne
807 Clay
807 Clay
805 Pewter
805 Pewter
518 Black
518 Black
502 Brown
502 Brown
280 White
280 White
177 Sandy Beige
177 Sandy Beige
949 Rock Maple
949 Rock Maple
948 Medium Teak
948 Medium Teak
947 Light Cherry
947 Light Cherry
946 Dark Mahogany
946 Dark Mahogany
943 Karri
943 Karri
OVERHANG SPECIFICATIONS
Quality Edge® Overhang System
The Quality Edge® Overhang System is a complete collection of soffit, porch ceiling, and underdeck products designed to enhance the performance and beauty of exterior roof overhangs and outdoor living spaces.
By combining durable metal construction with advanced ventilation technology, these products help protect roof structures while creating finished architectural ceilings for porches, decks, and exterior spaces.
Proper soffit ventilation plays a critical role in attic health. Ventilated soffit panels allow cool air to enter the attic while warm, moisture-laden air exits through roof ventilation systems. This continuous airflow helps reduce heat buildup and moisture accumulation inside the roof structure.
The Quality Edge overhang system includes five integrated product families:
-
Vesta® Plank Soffit
-
TruVent® Hidden Vent Soffit
-
TruLine® HP / TS Soffit
-
Inside Out® Underdeck
-
Porch Ceiling Collection
Together these systems allow architects and builders to design clean, finished ceilings across roof overhangs, covered porches, and underdeck living spaces.
Applications
Quality Edge overhang products are designed for:
-
Residential Homes
-
Covered Porches
-
Roof Overhangs
-
Outdoor Living Spaces
-
Underdeck Patio Systems
-
Multi-Family Housing
-
Light Commercial Construction

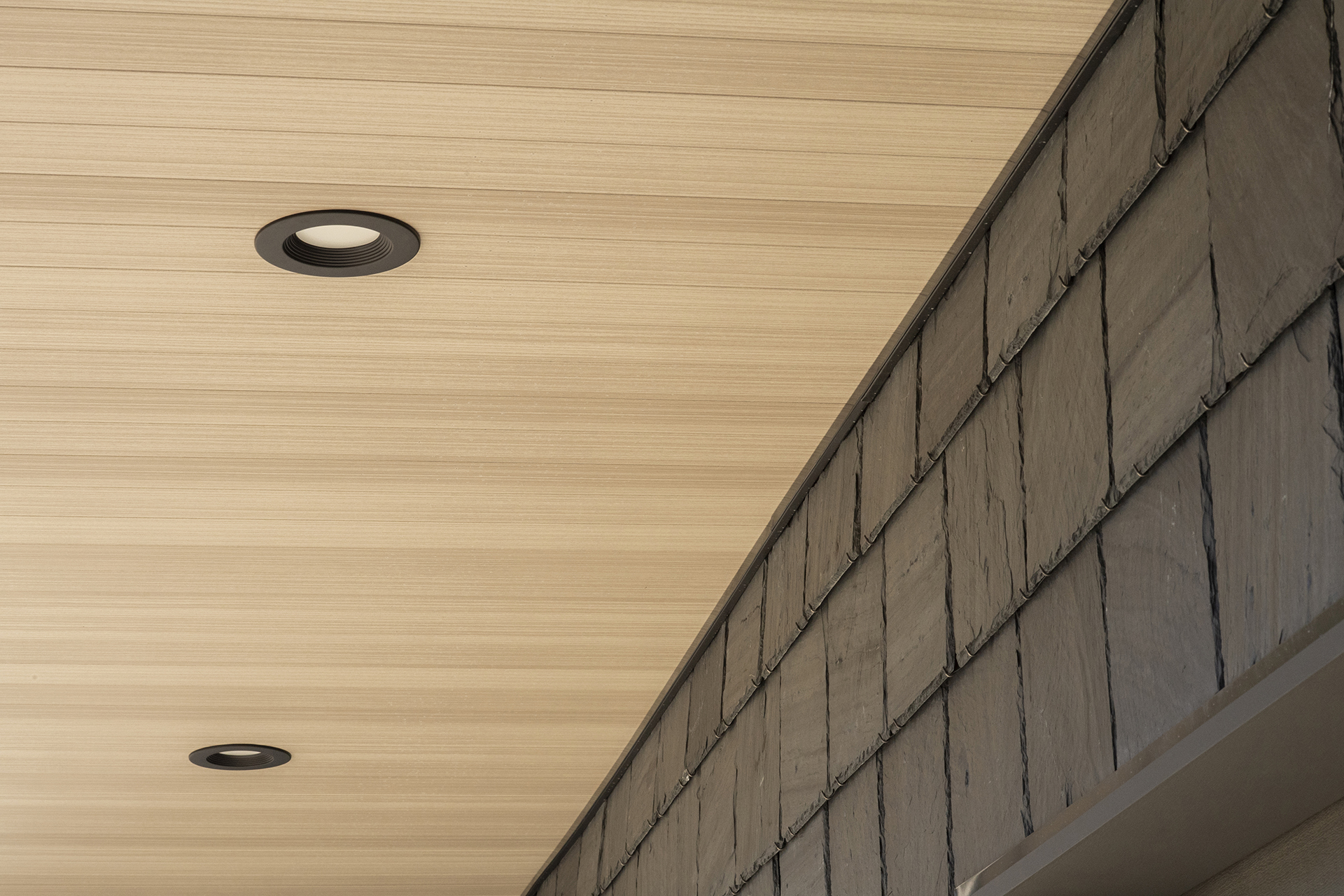

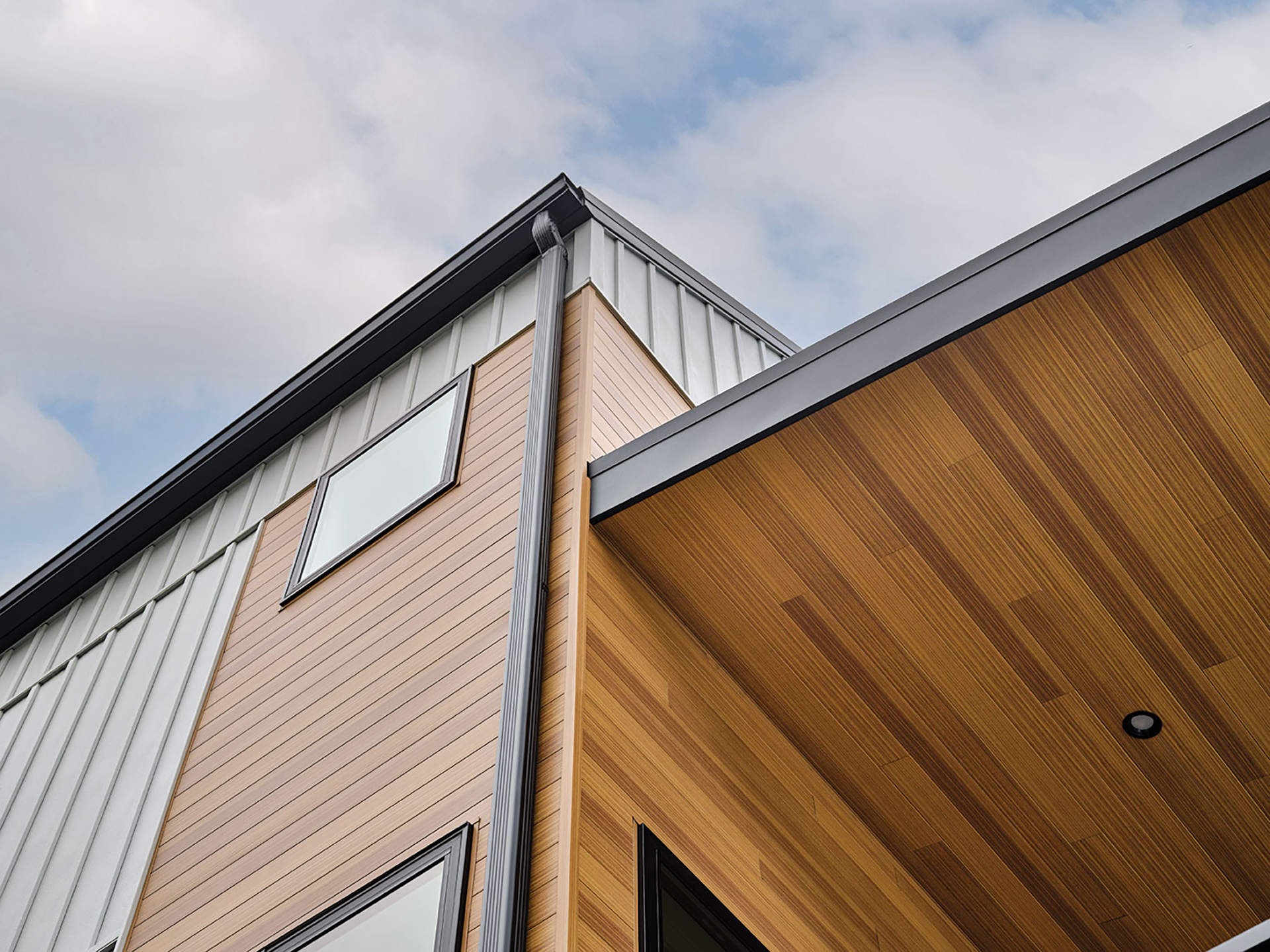

Vesta® Plank Soffit
Vesta Plank Soffit extends the architectural look of Vesta steel siding into the overhang. The plank profile creates clean horizontal ceiling lines and is often used for modern homes and contemporary exterior designs.
Material
Steel construction
Thickness
0.020″ steel
TruVent® Hidden Vent Soffit
TruVent Hidden Vent Soffit delivers attic ventilation while concealing vent openings within the panel design. This creates a clean soffit appearance without visible perforations.
Key Features
-
Hidden ventilation design
-
Continuous airflow
-
Clean architectural ceiling appearance
Material
0.019″ aluminum

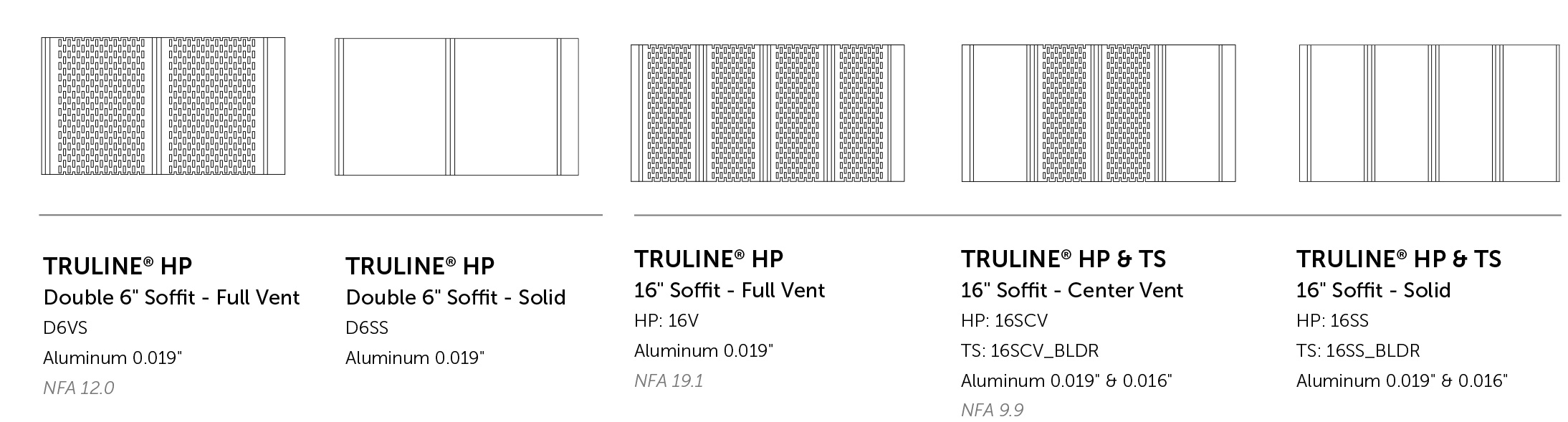

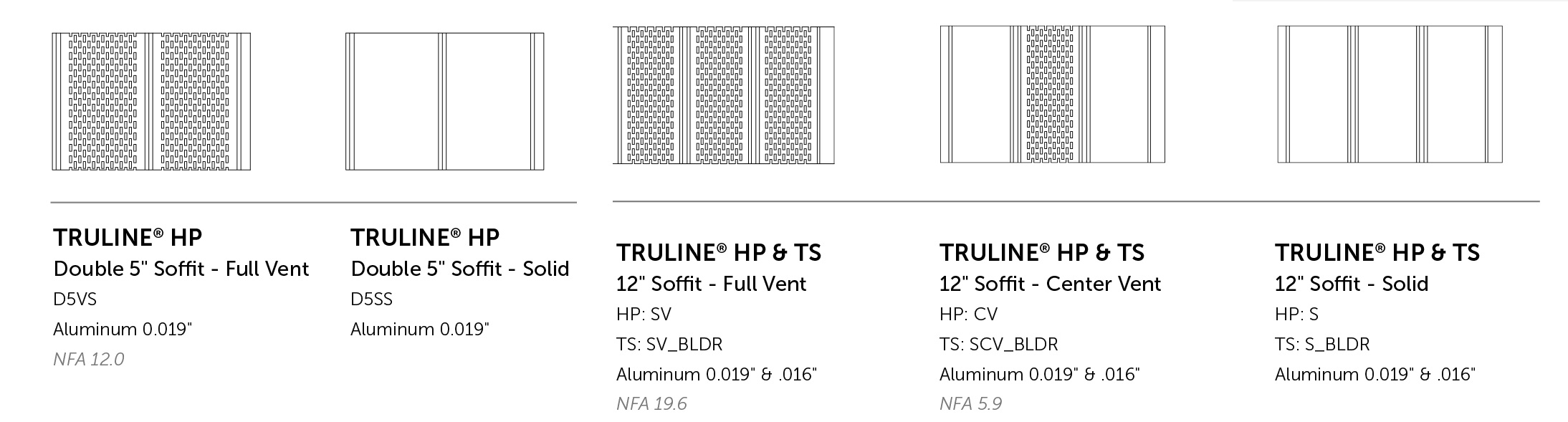

TruLine® HP / TS Soffit
TruLine soffit systems provide versatile soffit solutions with multiple ventilation configurations. These panels are commonly used for large roof overhangs and traditional soffit installations.
Available Configurations
| Panel Type | Description |
|---|---|
| Full Vent | Maximum ventilation airflow |
| Center Vent | Balanced ventilation |
| Solid | Non-vented soffit |
Material Thickness
| System | Thickness |
|---|---|
| TruLine HP | 0.019″ aluminum |
| TruLine TS | 0.016″ aluminum |
Panel Options
| Panel Type | Description |
|---|---|
| Full Vent Panel | Provides attic ventilation |
| Solid Panel | Non-vented ceiling applications |

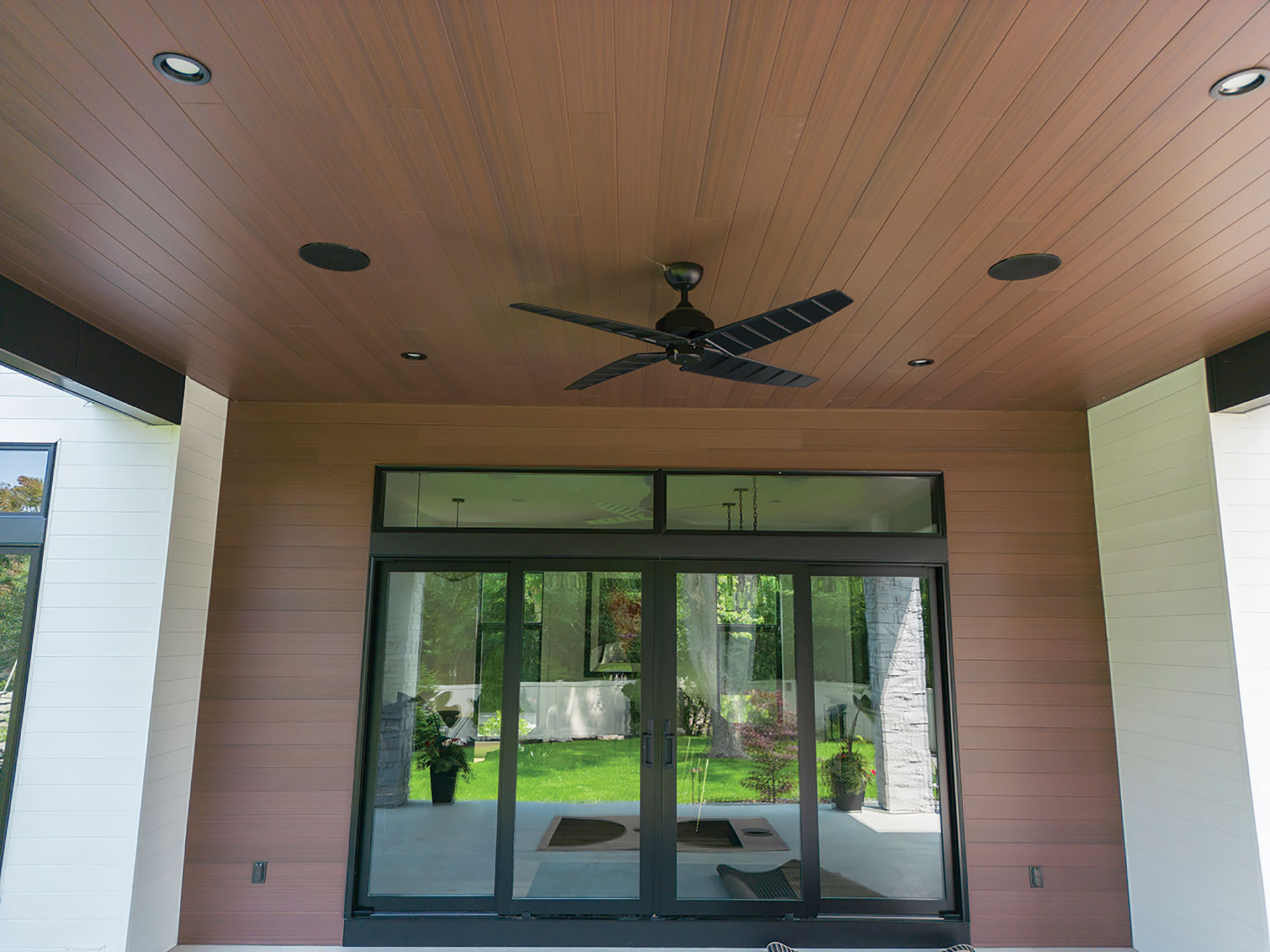

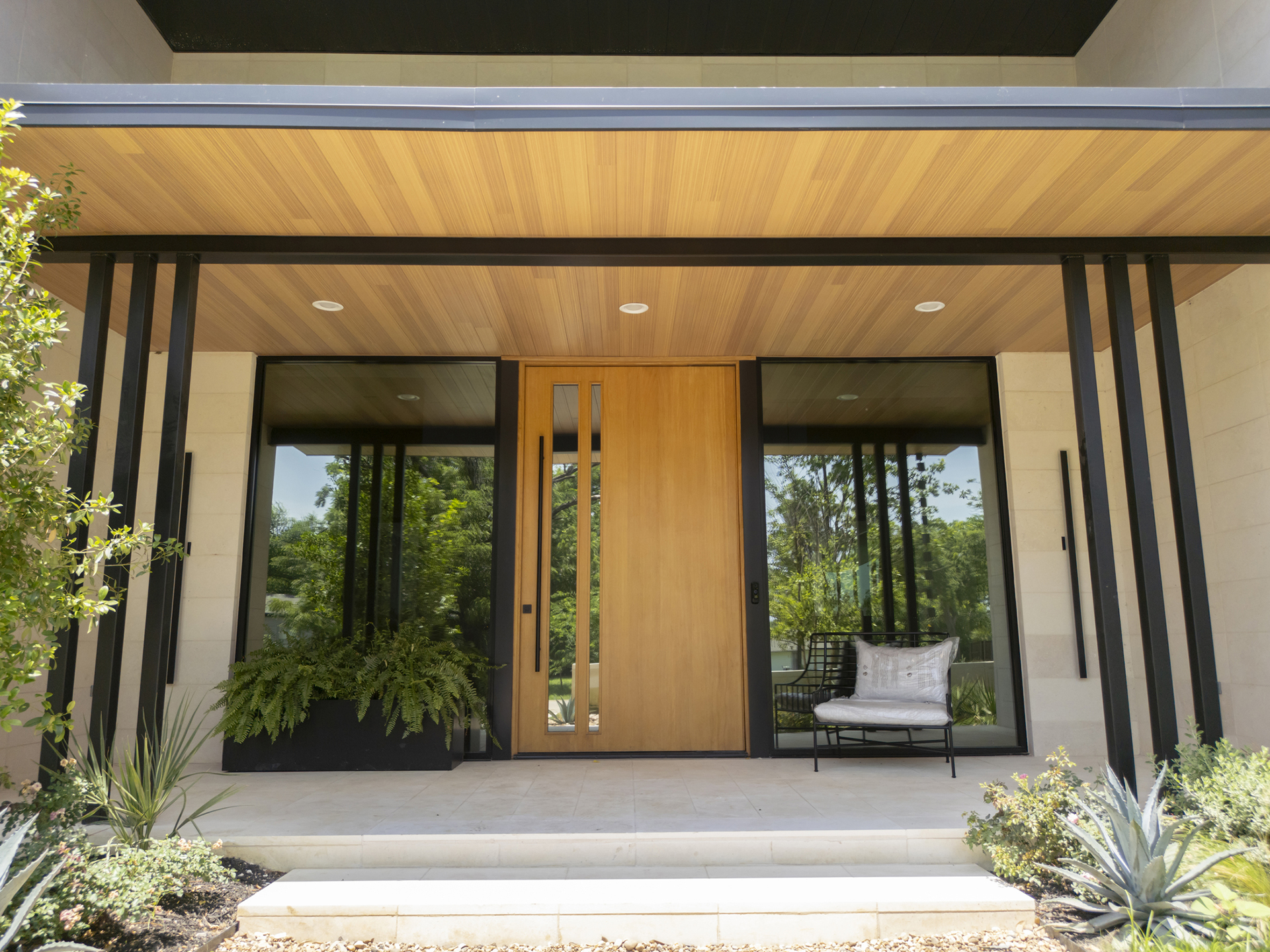

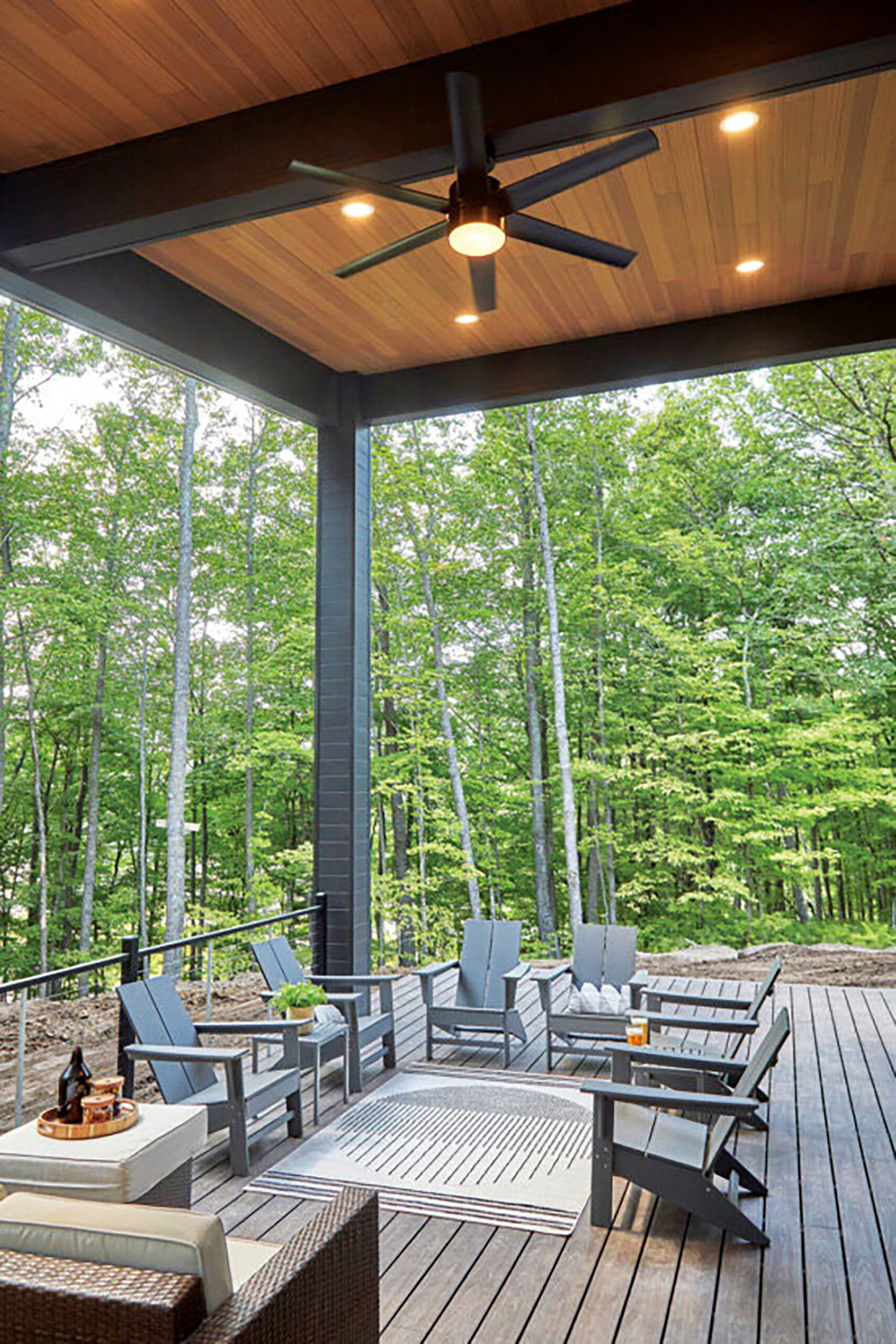

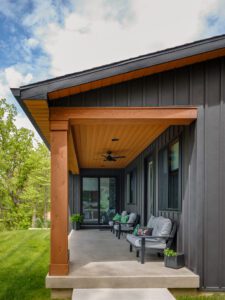

Porch Ceiling Collection
The Porch Ceiling Collection provides decorative ceiling panels designed specifically for covered outdoor spaces. These panels replicate the appearance of stained wood ceilings while providing the durability and low maintenance of aluminum.
Profile
| Panel | Description |
|---|---|
| Double 5″ Porch Ceiling Panel | Decorative woodgrain ceiling panel |
Inside Out® Underdeck
Inside Out Underdeck is a drainage system that converts the space beneath elevated decks into dry outdoor living areas.
System Benefits
-
Creates dry space under decks
-
Channels rainwater away from deck framing
-
Expands usable outdoor living space
-
Ideal for patios and outdoor kitchens
Material Construction
Quality Edge overhang systems are engineered using durable metal construction designed to withstand exterior conditions.
Materials include:
-
galvanized steel soffit panels
-
architectural aluminum soffit systems
-
corrosion-resistant finishes
-
multi-layer protective coatings
These materials provide long-term durability while maintaining a finished architectural appearance.
Ventilation Performance
Proper soffit ventilation improves attic airflow and helps protect roofing systems from moisture buildup.
Ventilated soffit panels allow outside air to enter the attic while pushing warm air out through ridge or roof vents. This process helps reduce heat buildup and prolongs the lifespan of roofing materials.
Typical ventilation ratings include:
| Product | Net Free Area |
|---|---|
| TruVent Hidden Vent | 11.0 NFA |
| TruLine Full Vent | Up to 19.6 NFA |
| TruLine Center Vent | 5.9 NFA |
Performance Benefits
Durability
Metal soffit panels resist warping, cracking, and moisture damage.
Moisture Protection
Ventilated soffit systems help control attic moisture.
Low Maintenance
Metal soffit panels do not require painting or sealing.
Architectural Design Flexibility
Multiple soffit styles allow builders to match siding and trim systems.
Panel Dimensions
| Product | Typical Length |
|---|---|
| Vesta Plank Soffit | 8 ft or 12 ft |
| TruVent Hidden Vent | 12 ft |
| TruLine HP / TS Soffit | 12 ft |
Finish Options
Quality Edge soffit and ceiling systems are available in both solid colors and woodgrain finishes.
Solid Colors
White
Black
Brown
Clay
Evening Shade
Ironstone
Silver Lining
Fresh Canvas
and other coordinated exterior colors.
Woodgrain Finishes
Examples include:
-
Karri
-
Medium Teak
-
Dark Mahogany
-
Rock Maple
-
Light Cherry
These finishes replicate the appearance of stained wood ceilings while maintaining the durability of metal.
Installation System Components
The overhang system integrates with coordinated trim and accessory components.
Common installation components include:
-
F-channel
-
J-channel
-
Cove soffit receiver
-
Fascia systems
-
Recessed crown molding
-
Mitre dividers
-
Trim accessories
These accessories ensure a complete overhang system designed for reliable installation and long-term performance.
